Transformer winding machine is one of the winding equipment, choosing the right winding machine is the key to producing coils, there are many types of winding machines as basic equipment. The following transformer winding machine as an example to explain. Transformer winding machine is generally divided according to the transformer voltage level or capacity, the common foil winding machine, automatic winding machine, vertical winding machine, general CNC winding machine, etc., the following to explain the specific.
I. Foil winding machine

Foil winding machine, also known as foil winding machine, is mainly used for winding transformers, amorphous transformers, and related electrical foil coils. Foil coils are made of different copper or aluminum as the carrier, with wide strip insulation material as the interlayer insulation, and are wound on the foil winding machine once to form foil coils, which can be round or rectangular in shape. Its structure and function are more complicated than general winding machine, and technologies such as tension control, photoelectric induction active deflection, active welding, and pressure hair decontamination are widely used in the industry.

Second, automatic winding machine

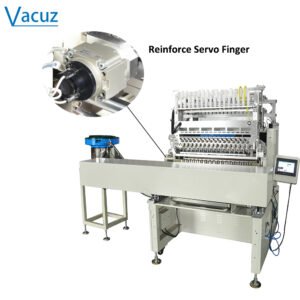

The emergence of active winding machine has greatly reduced the intensity of the operator’s winding. Our common active winding machines generally use CNC controllers, high-end models use PLC and precision servo systems to meet the needs of modern electricity, the speed of the current active winding machine is getting higher and higher, the processing capacity is also improving, supporting the use of wire tensioning mechanism, so that the winding coil is beautiful and neat.

Three, vertical winding machine

For the vertical winding machine may not be very common, it belongs to the special equipment, in large transformers, high-voltage coil winding throughout the use of vertical winding machine, and low-voltage spiral coil also uses vertical winding machine, its working principle and processing range is completely different from our common parallel winding machine, the current vertical winding machine further to large-scale development, load-bearing capacity is also increasing, so that the winding production to a new level of winding production.

Fourth, the general CNC winding machine

General CNC winding machine is our common winding equipment, the series of product line covers a wide range of small and medium-sized models as well as major models, the control system generally uses a single-chip circuit, due to low prices, stable performance, easy maintenance, etc., in transformer manufacturers are widely used.
