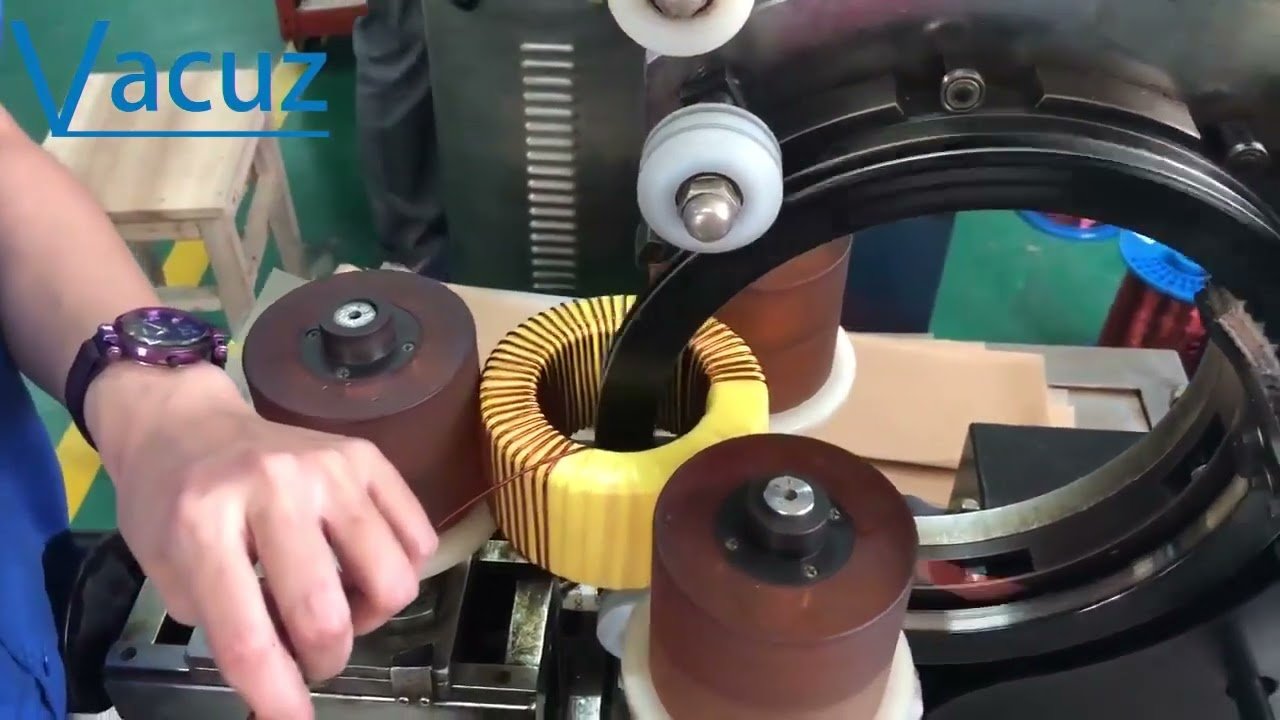

High Precision Automatic Toroidal Coil Inductor Current Transformer CNC Winding Machine

Machine Features

1、Using touch screen + PLC control to achieve automatic counting, automatic stopping, stopping record storage. Easy and simple to operate. And real-time monitoring of operating data.

2、The electrical control part is modular design to reduce maintenance cost.

3、The main drive is frequency conversion control stepless speed regulation, large speed range, high winding precision, stable tension control without No wire breakage.

4、The winding machine uses high quality Baosteel steel, not easy to deform. The main electrical components are imported high quality brands. The use of mission long, not easy to break down.

5、It can realize double or multi-wire winding.

Main Technical Parameter

Model	VA-260D	VA-350D	VA-450D	VA-550D
Wire range	0.5-1.5mm	0.5-2.6mm	0.5-3.2mm	0.5-3.2mm
Min inner diameter after winding	30mm	50mm	60mm	60mm
Max outer diameter after winding	260mm	350mm	450mm	550mm
Max height after winding	70mm	100mm	140mm	250mm
Max winding speed	100RPM/Min	100RPM/Min	100RPM/Min	100RPM/Min
Machine power	1500W	1500W	1500W	1500W
Machine Dimension	800*1050*1400mm	800*1050*1400mm	800*1050*1400mm	800*1050*1400mm

Sample Show
