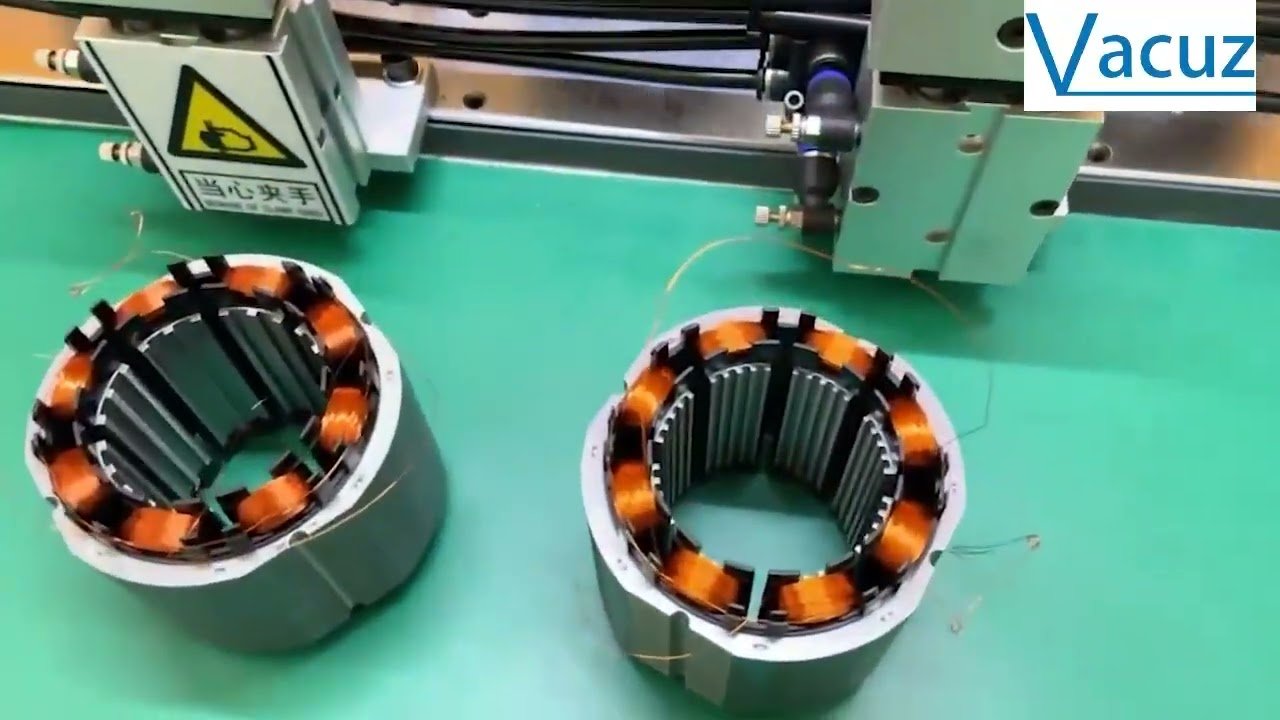

High Speed Four Spindles Cooling Fan Motor Automatic BLDC Brushless Inner Stator Coil Needle Winding Machine

Machine Feature
The system language is English. can remember multiple groups of parameters at the same time. 4 Stators could be wound at the same time. the winding coil is neat and the number of turns is accurate, simple operation, save labor; Machine automatic winding, automatic Turning, automatic line arrangement, automatic clipping; Winding using tungsten steel wire tip, enameled wire loss to a minimum; Mold can be quickly replaced, change the product you can only change the mold.

◆ There are 4 work stations working at the same time, the empty load speed reaches 800r/min

◆ Strong universality, easy and quick to change type; all imported servo motor electric drive, accurate and stable

◆ All imported high precision ball screw and guide rail, to ensure the accuracy of the equipment, long-lasting

◆ The chassis is thickened square tube welded casting, stable chassis, strong overall stability and rigidity.

Application range

Suitable for household appliances motors, medical equipment motors, industrial fans, water pumps, new energy vehicles, resolvers, sensors, servo motors, stepper motors pump motors, vacuum cleaner motors, power tools motors and other stator cores, for all types of brushless motor winding.

Machine Function
Needle Type

Suitable winding wire diameter	Φ0.08-Φ1.0mm (Select wire rack according to the wire diameter)
Station	Four Stations
Number of slots	2-36 slots
Stator outer diameter	Φ20-100mm (outside the range can be customized)
Stator inner diameter	Φ12-80mm (outside the range can be customized)
Stator product thickness	Φ5-70mm (outside the scope can be customized)
Spindle Pitch	155mm(Optional 195mm)
Drive Motor	3000W One Set
Wiring Servo	Two Sets of 750W
Rotary Servo	Two Sets of 3000W
Power supply	Three Phase 380V 50Hz
Dimensions	About 1000W*1100L*1700H
Air pressure	7kg/cm²
Weight	About 680kg
