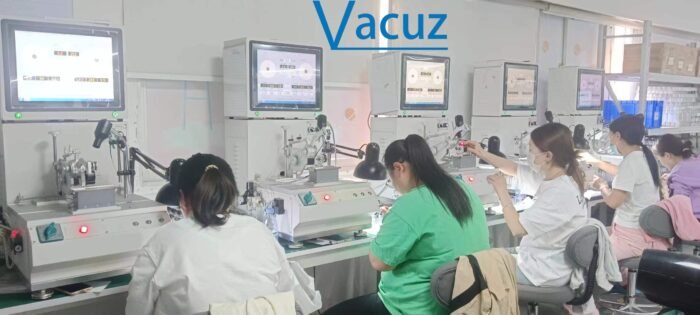

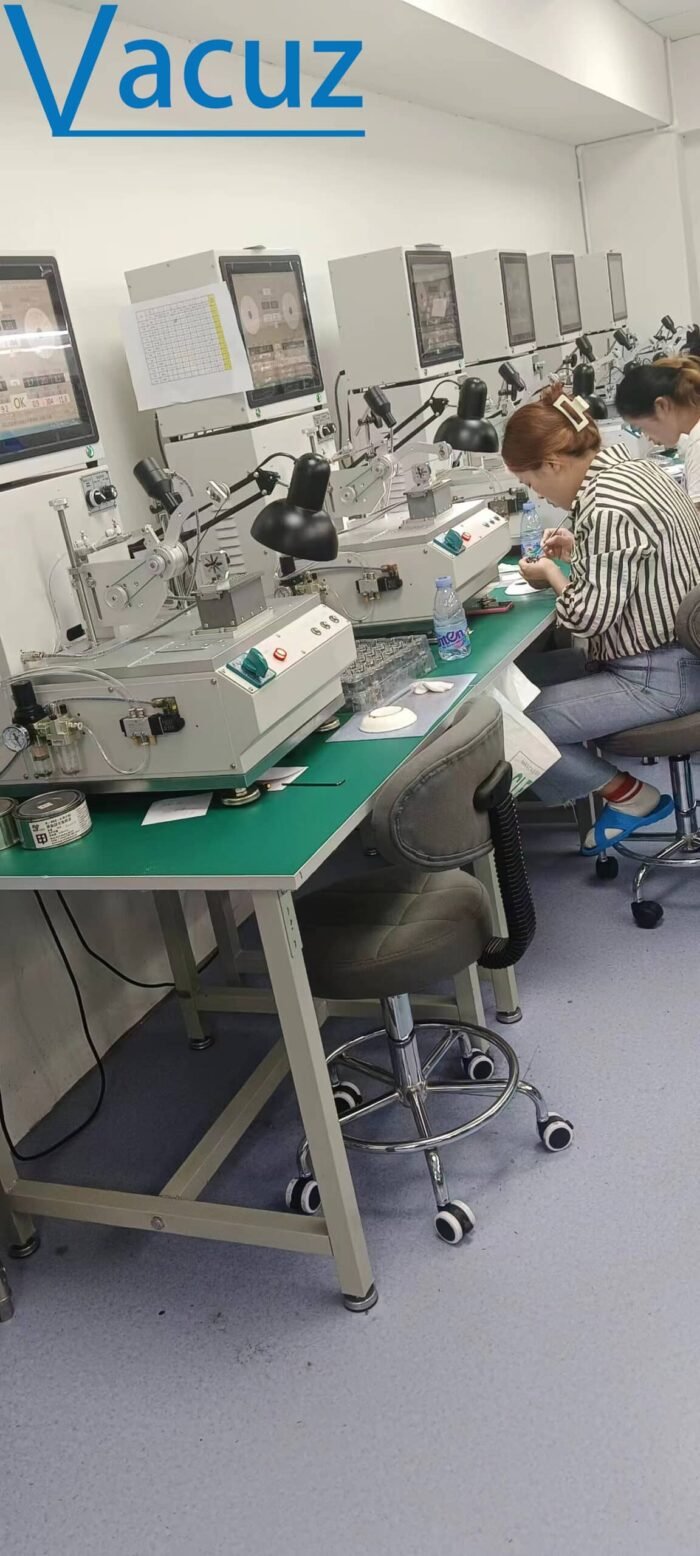

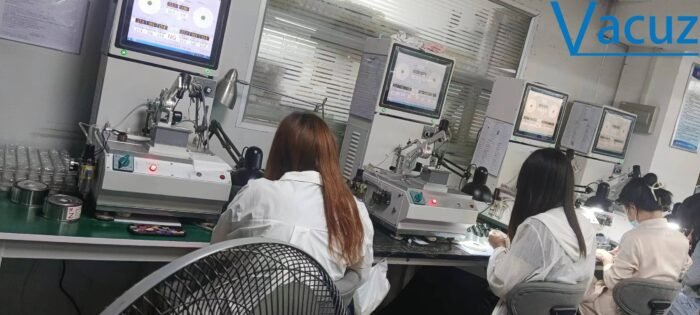

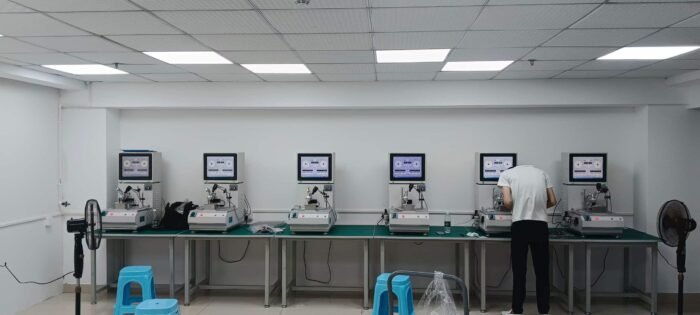

Hot Selling Vacuz Automatic FPV UAV Drone Motor BLDC Brushless Stator Rotor Coil Horizontal Double-Sided Dynamic Balancing Testing Machine

Balancing Machine Features

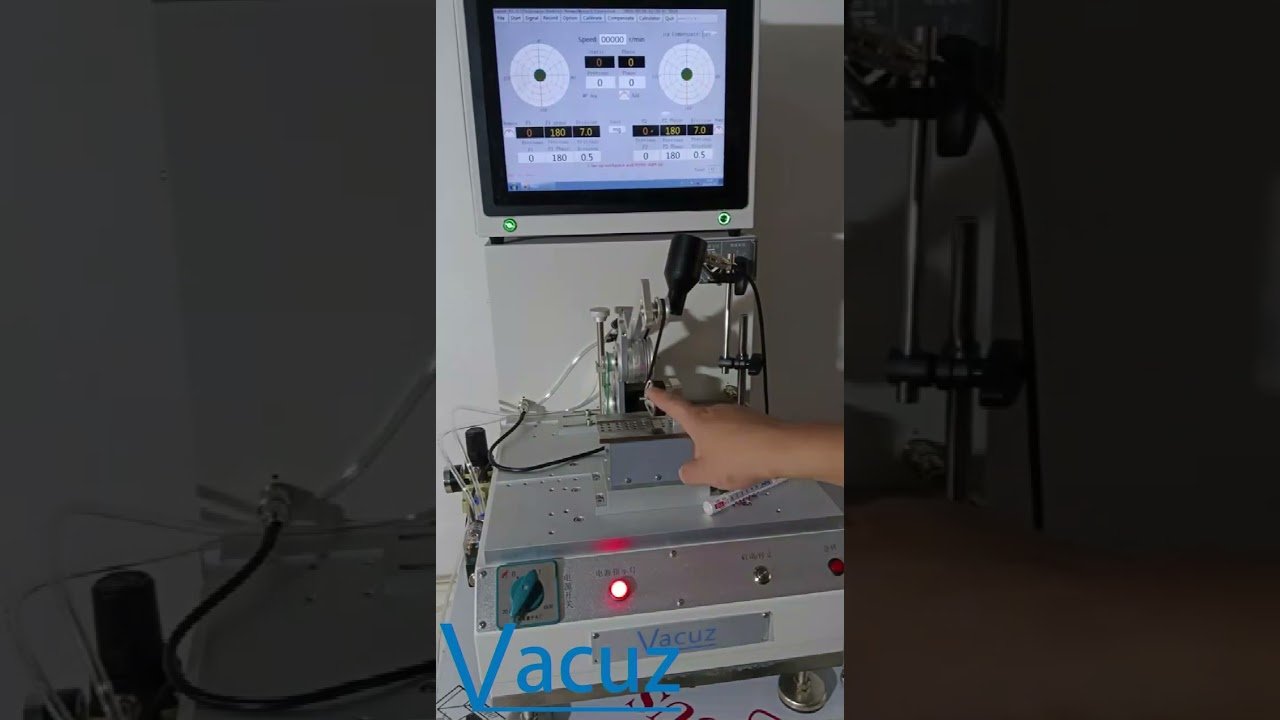

1、Human-machine interface (touch-screen display) intuitive display of unevenness and angle.

2、Measuring without mark, can achieve high precision automatic positioning, no need to make any mark on the rotor.

3、Automatic data tracking, no belt slippage caused by positioning errors.

4、Weighting / de-weighting can be switched at will, easy to use.

5、Set qualified value, automatic identification to reach the balance qualified value.

6、Adopt normal code calibration, computer automatic data processing correction balancing machine accuracy.

7、Automatic positioning function: optional

Application

Suitable for tiny motor rotor, such as car wiper motor, household appliances small motor, micro motor, series excitation motor and other rotor dynamic balance test.

Machine Parameters

Machine model:

VB-302

Workpiece weight range(kg):	0.02-0.3kg
Support shaft diameter range:	Ф3-18mm
Measuring speed range:	1000~6000rpm/min
Distance between two supports:	20-250mm
Diameter of workpiece:	ф30-ф80mm
Minimum remaining unbalance:	0.2g.mm/kg
Minimum display imbalance:	0.001g
System type: automatic positioning system can be selected
Primary unbalance reduction rate:	96% or more
Working environment temperature:	0~60°C
Working environment humidity:	5%~95%
Power supply:	220V 50Hz

Vacuz Machine Factory was founded in May 2007, located at Dongguan City in Guangdong Province. It is a professional manufacturer engaged in the research, development, production, sale, and service of automatic winding machines, bobbin winding machine, transformer winding machine, motor winding machine, wireless coil winding machine, SQ common mode choke inductor winding machine and other non standard winding machines . Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as the Middle East, Europe, Africa, Asia, and North America. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements. Quality is our culture! Hope for your cooperation soon!

Packing & Shipping

1.Port: Shanghai/Shenzhen or your choice

Package and transport
General package(Paper carton or plastic bag): For small goods, Package it with form and pack paper to guarantee unbroken during the transport.
Wooden case package: For larger scale goods as machine equipment etc, we have special skilled carpenter, who would make the proper wooden case with exact thickness,density,length. The up arrow ↑marked on the outer wooden case. Buffer material would be put in the wooden case to prevent crack and shock. We will inform you the delivery note. You just need to wait for phone call, then pick up the goods at the nearest logistic station .(Please let me know in advance if you want get the goods at home.)



Vacuz Service & Strength

Service tenet
Provide you the best service with “fast + satisfactory + safe”.
Warranty period
12 months long after the user received the product.
Warranty items
Only for abnormal breakdown caused by the machine design or manufacture defect,
free repair and accessory will be provided.
Technology service ability
All service engineers with many years experience are gotten special technology training, who can deal with various breakdown problem.
Guide the user to use accurately and how to maintain the product.
Provide free consultation about production process technology of electronic products.
Service after sell
In order to guarantee the machine used normally, we’d have training on how to operate, use and maintain our product by English manual, video, guiding on line.
Use instruction
Apply for the right complete size of product, otherwise, the wrong dimensions will affect the use effect.
Do ensure using the product accord to the use instruction completely.Do not exceed the scope of application of the products.
Maintain the product after use,Damp proof, rust proof, leak proof, explosion-proof, regular maintenance and inspection should be taken care. All done help to extend the use period.
User document management
Establish perfect user document management in EPR system, Every product running details would be followed to manage. The users would be taken good care.
About product
1. Product photo: All product photos are taken by real product, There is the color aberration between the product and photo, which is caused by shoot light, product size, manual technology and computer display etc. It’s not quality problem. Parts of products
are changed in appearance due to technology revolutionary and process improvement. SanShine would ensure the parameter of product is unchanged, The product couldn’t affect to use.
2.Product size: All parameters are all measured by manual just for reference. There is a small deviation due to the difference of measure tools, lot products and produce process. Real size should be accordance with the final delivery product.
3.Quality inspection: All products should be inspected strictly before shipment. Ensure the good function and appearance.

Vacuz Machine Video

FAQ With Vacuz

1.How to select the best-suited automatic coil winding machine for your coil?

Tell us your coil data as below please:  OD & ID of the coil before winding, Height of the coil before winding, Layers, Wire Turns , Dia of the copper wire, pictures or videos of products which are better.

2.This is the first time I use this kind of machine, is it easy to operate?

There is an English manual or guide video that shows you how to use the machine.

If you still have any questions, please contact us by e-mail/WhatsApp/WeChat online service.

3.If the machine has any problem after I receive it, how can I do?

Free parts send to you in the machine warranty period. but you need to pay the postage.

4.What’s the MOQ?

1 set machine, mixed order is also welcomed.

5.How can I buy this machine from you? ( Very easy and flexible !)

A. Consult us about this product online or by e-mail.

B. Negotiate and confirm the final price, shipping, payment methods, and other terms.

C. send you the proforma invoice and confirm your order.

D. Make the payment according to the method put on the proforma invoice.

E. We prepare for your order in terms of the proforma invoice after confirming your full payment. And 100% quality check before shipping.

F.Send your order by air or by sea.
