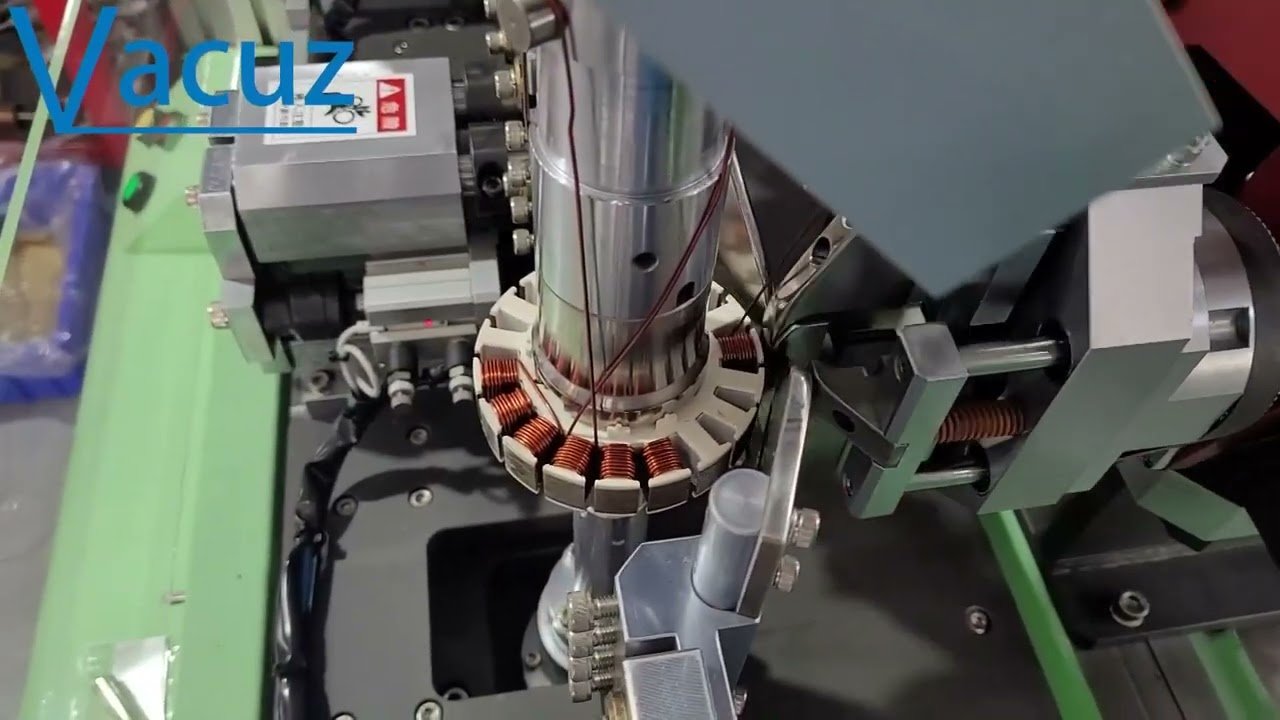

Machine Feature
The system language is English. can remember multiple groups of parameters at the same time. 2 Stators could be wound at the same time. the winding coil is neat and the number of turns is accurate, simple operation, save labor; Machine automatic winding, automatic Turning, automatic line arrangement, automatic clipping; Winding using tungsten steel wire tip, enameled wire loss to a minimum; Mold can be quickly replaced, change the product you can only change the mold.
◆ Can work in 2 stations and wind multiple copper wires at the same time, single strand line up closely
◆ Special stator core winding solution can be customized for all kinds of external stator winding.
◆ Modular design of fixture makes it easier to change the type.
◆Multiple adjustable machine types, rapid switching, high efficiency and fast production speed
Application range
It is suitable for winding model motors, balance car motors, scooter motors, new energy vehicle motors, resolver, fan stators, twist car motors, cooling fan stators, planters, all kinds of external winding stators, etc.
Machine Function
Flying Fork Type
Suitable winding wire diameter
|
Φ0.1-Φ0.7mm (Select wire rack according to the wire diameter)
|
Station
|
Two Stations
|
Number of slots
|
2-36 slots
|
Stator outer diameter
|
Φ20-140mm (outside the range can be customized)
|
Lineup Width
|
30mm |
Stator product thickness
|
Φ5-50mm (outside the scope can be customized)
|
Counting Accuracy | ±0.05turn |
Controller | Touch Motion Controller |
Speed | 0-2000Rpm/min (depending on the actual wire diameter and stator size) |
Air pressure
|
6kg/cm²
|
Power supply
|
AC 220V 50Hz
|
Dimensions
|
About 630W*850L*1590H
|
Weight
|
About 350kg
|
