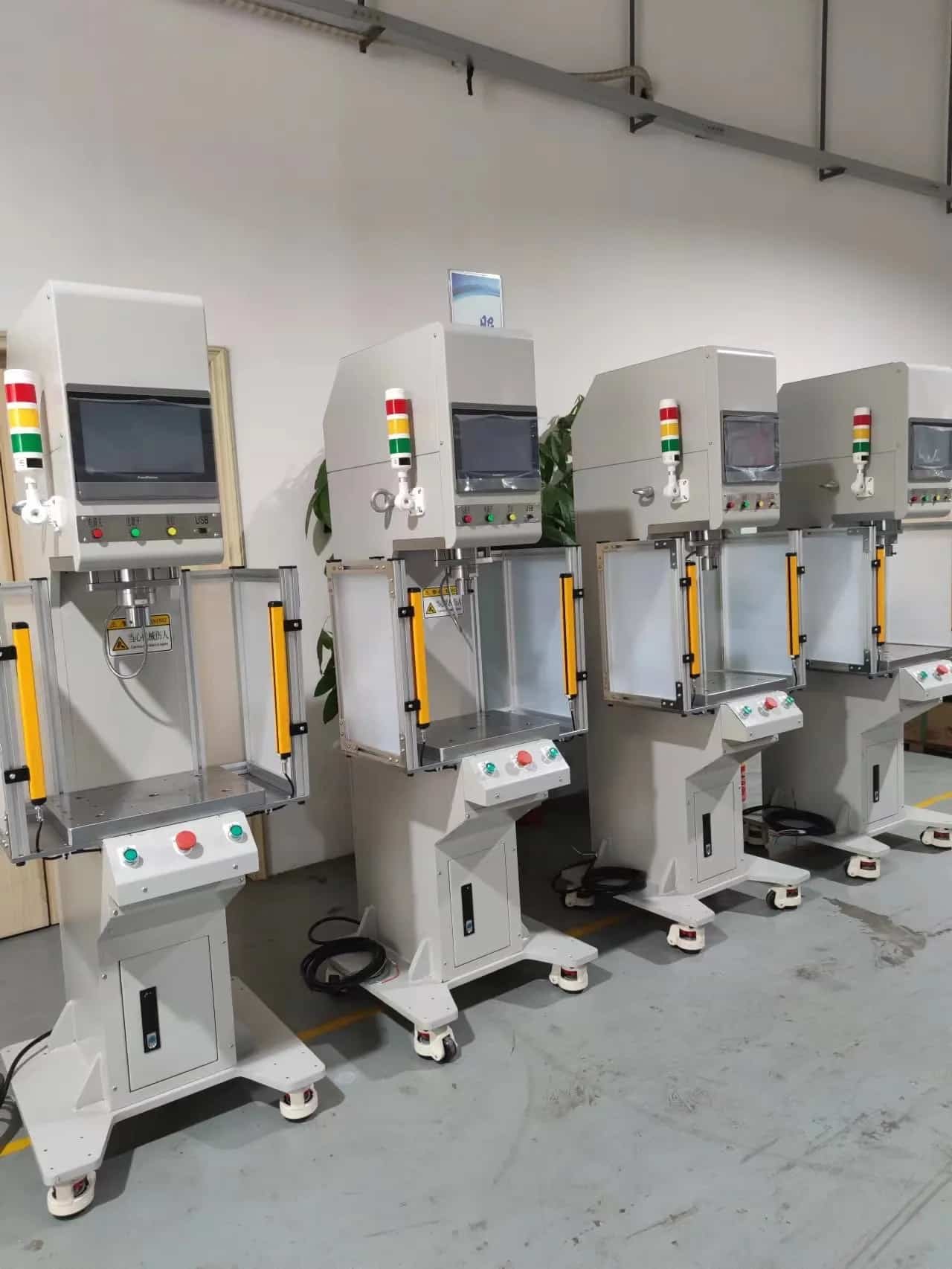

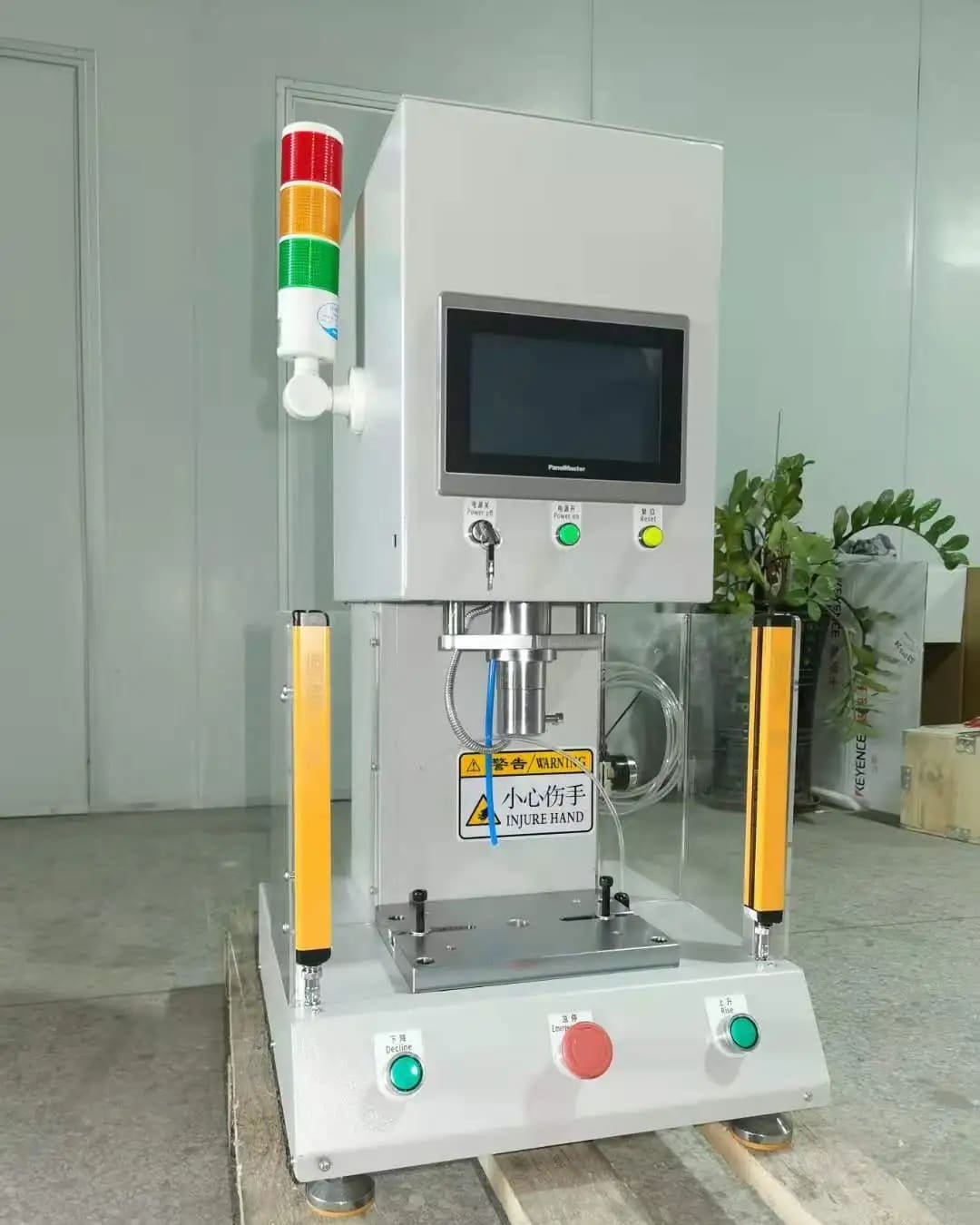

Vacuz Precision Desktop Electric Servo Punching Press Machine 5 Ton and 3 Ton for Manufacturing Plants

Machine Features

Position setting function:

1. Indenter position display, which can be set;
2. Press-fitting adjustable stroke: 0-150mm, controllable digital display actual press-fitting stroke;
3. Repeat accuracy: ±0.01mm;

Pressure setting function:

1. Display pressing pressure;
2. Set the upper limit of the pressure head pressure. When the press-fitting pressure is greater than the upper limit pressure, the upper pressure head immediately returns and alarms;
3. Set the lower limit of the pressure head pressure. When the press-fitting pressure is less than the lower limit pressure, the upper pressure head will return immediately and alarm;
4. Pressure display: 0-50000N, pressure curve real-time display.
5. It can store more than 100 sets of workpiece programs, which can be called at any time, and it has the function of parameter setting.

Machine Applications:

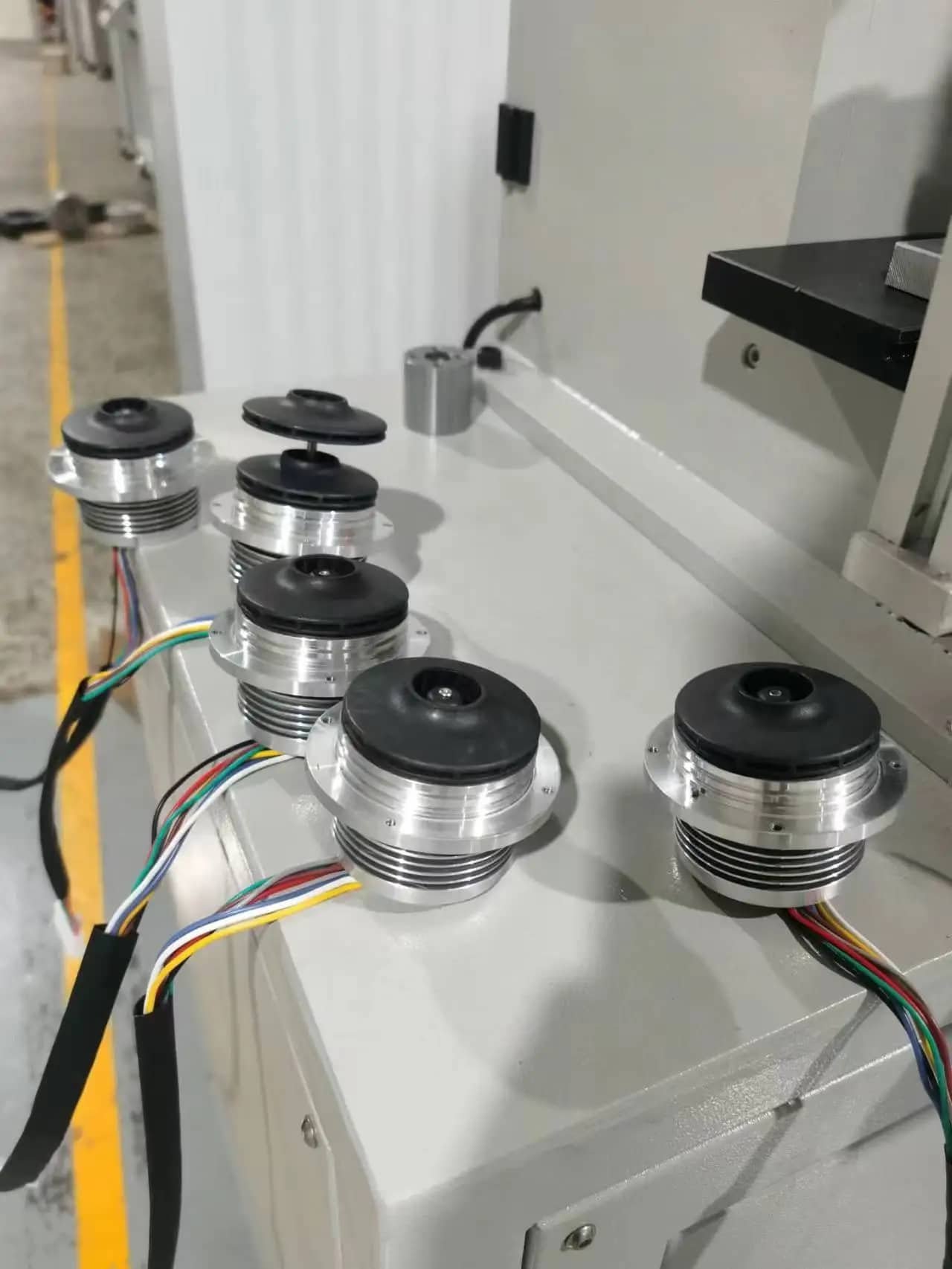

1: Press-fitting of motor bearings

2: Press-fitting of the motor rotor

3: Press-fitting of automobile valve core

4: Press-fitting of motor shell

5: Press-fitting of automobile brake disc bearings

6: Press-fitting of motor gear

7: Press-fitting of bearing retainer for automobile direction assembly

8: Press-fitting of copper gaskets for automobile oil pipes

9: Press-fitting of the automobile tubing head

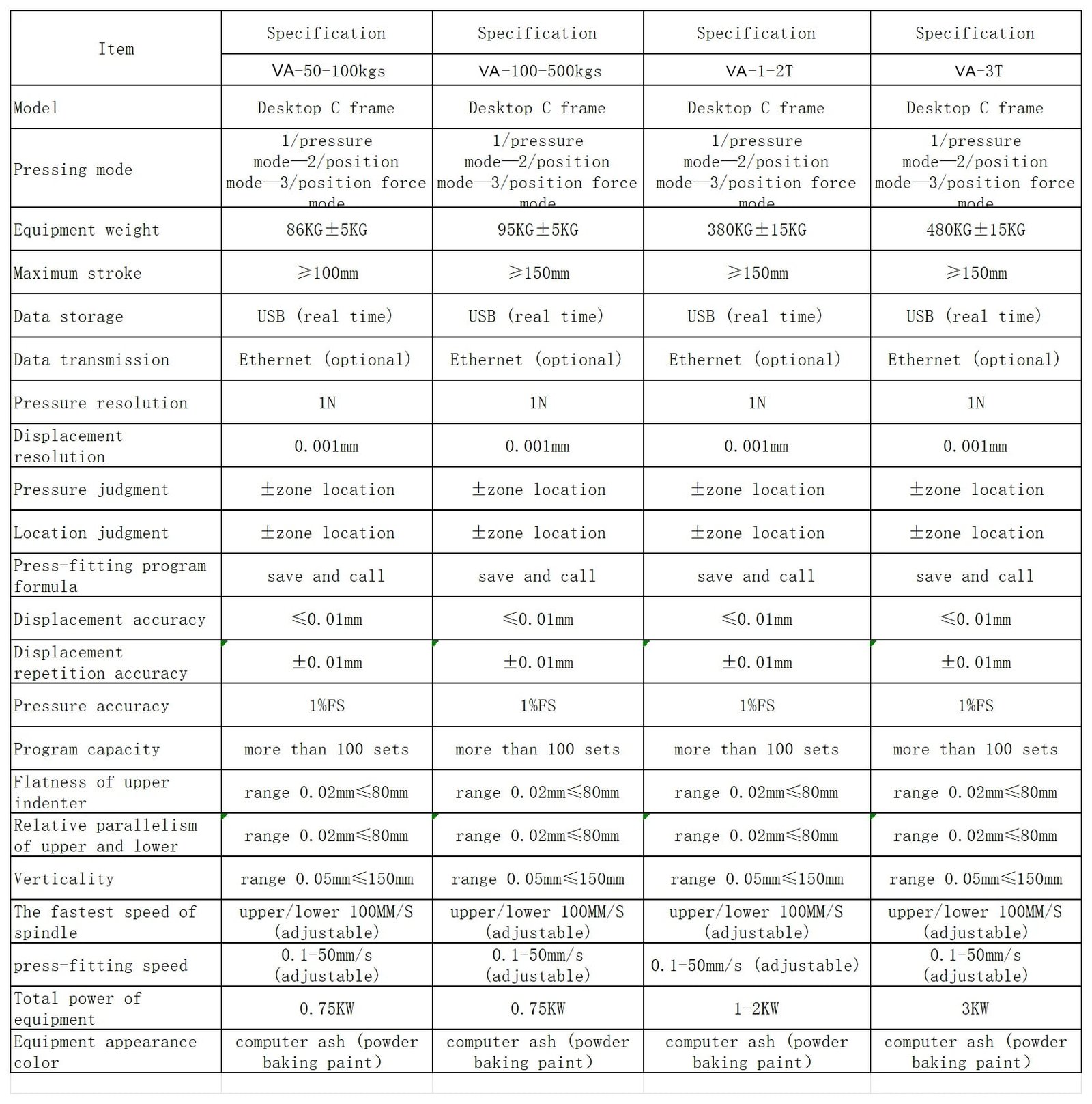

Main Technical Parameter



Company Information

Vacuz Machine Factory was founded in May 2007, located at Dongguan City in Guangdong Province. It is a professional manufacturer engaged in the research, development, production, sale, and service of automatic winding machines, bobbin winding machine, transformer winding machine, motor winding machine, wireless coil winding machine, SQ common mode choke inductor winding machine and other non standard winding machines . Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as the Middle East, Europe, Africa, Asia, and North America. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements. Quality is our culture! Hope for your cooperation soon!

Packing & Shipping

1.Port: Shanghai/Shenzhen or your choice

Package and transport
General package(Paper carton or plastic bag): For small goods, Package it with form and pack paper to guarantee unbroken during the transport.
Wooden case package: For larger scale goods as machine equipment etc, we have special skilled carpenter, who would make the proper wooden case with exact thickness,density,length. The up arrow ↑marked on the outer wooden case. Buffer material would be put in the wooden case to prevent crack and shock. We will inform you the delivery note. You just need to wait for phone call, then pick up the goods at the nearest logistic station .(Please let me know in advance if you want get the goods at home.)



Vacuz Service & Strength

Service tenet
Provide you the best service with “fast + satisfactory + safe”.
Warranty period
12 months long after the user received the product.
Warranty items
Only for abnormal breakdown caused by the machine design or manufacture defect,
free repair and accessory will be provided.
Technology service ability
All service engineers with many years experience are gotten special technology training, who can deal with various breakdown problem.
Guide the user to use accurately and how to maintain the product.
Provide free consultation about production process technology of electronic products.
Service after sell
In order to guarantee the machine used normally, we’d have training on how to operate, use and maintain our product by English manual, video, guiding on line.
Use instruction
Apply for the right complete size of product, otherwise, the wrong dimensions will affect the use effect.
Do ensure using the product accord to the use instruction completely.Do not exceed the scope of application of the products.
Maintain the product after use,Damp proof, rust proof, leak proof, explosion-proof, regular maintenance and inspection should be taken care. All done help to extend the use period.
User document management
Establish perfect user document management in EPR system, Every product running details would be followed to manage. The users would be taken good care.
About product
1. Product photo: All product photos are taken by real product, There is the color aberration between the product and photo, which is caused by shoot light, product size, manual technology and computer display etc. It’s not quality problem. Parts of products
are changed in appearance due to technology revolutionary and process improvement. SanShine would ensure the parameter of product is unchanged, The product couldn’t affect to use.
2.Product size: All parameters are all measured by manual just for reference. There is a small deviation due to the difference of measure tools, lot products and produce process. Real size should be accordance with the final delivery product.
3.Quality inspection: All products should be inspected strictly before shipment. Ensure the good function and appearance.

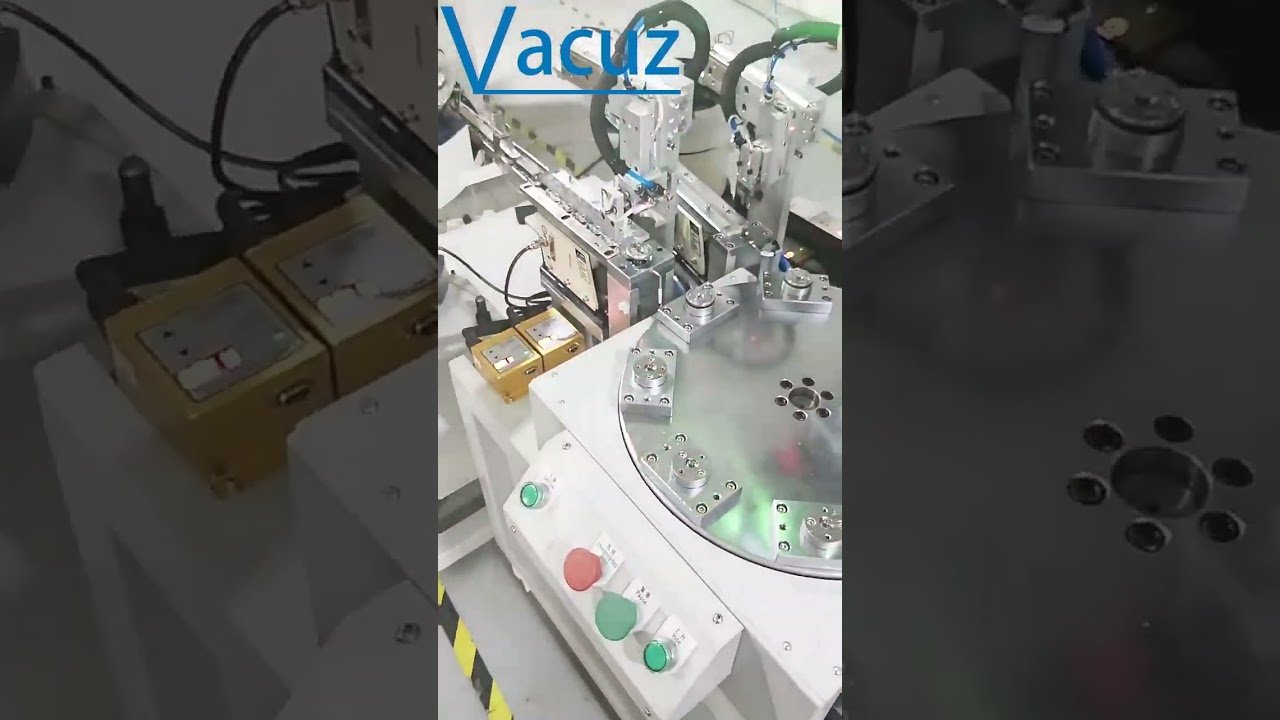

Vacuz Machine Video

FAQ With Vacuz

1.How to select the best-suited automatic coil winding machine for your coil?

Tell us your coil data as below please:  OD & ID of the coil before winding, Height of the coil before winding, Layers, Wire Turns, Dia of the copper wire, pictures or videos of products which are better.

2.This is the first time I use this kind of machine, is it easy to operate?

There is an English manual or guide video that shows you how to use the machine.

If you still have any questions, please contact us by e-mail/WhatsApp/WeChat online service.

3.If the machine has any problem after I receive it, how can I do?

Free parts send to you in the machine warranty period. but you need to pay the postage.

4.What’s the MOQ?

1 set machine, mixed order is also welcomed.

5.How can I buy this machine from you? ( Very easy and flexible !)

A. Consult us about this product online or by e-mail.

B. Negotiate and confirm the final price, shipping, payment methods, and other terms.

C. send you the proforma invoice and confirm your order.

D. Make the payment according to the method put on the proforma invoice.

E. We prepare for your order in terms of the proforma invoice after confirming your full payment. And 100% quality check before shipping.

F.Send your order by air or by sea.
