High Frequency Ferrite Core Electric PQ EE EI RM ER EPC Transformer Voltage Step Down Transformer For Power Manufacturer Cost
Application
Television receiver
Radio cassette player
PC power supply
Monitor,audio,VCD,DCD
UPS
The electronic apparatus
The noise rejection
Induction cooker,etc.
Specification
Low core loss at frequency
High reliability, efficiency
Small packaged size
Operating Temperature: -30°C to +80°C
Electrical Specifications at 20°C
|
Components
|
Ferrite core, bobbin, copper wire, copper foil tape, margin tape, tube
|
|
Bobbin Material
|
Phenolic
|
|
Shape Type
|
horizontal type / vertical type / SMD type
|
|
Working Frequency Range
|
above 1KHZ
|
|
Output Power
|
Output Power :1W-3000W
|
|
Output Voltage
|
0.5V-5000V,support customization
|
|
Output Current
|
0.01A-100A,support customization
|
|
Certifications
|
ISO9001:2008, ISO14001:2008, UL, CQC
|
|
MOQ
|
Normally 3000 pieces
|
|
Lead time
|
3-7 working days for samples, 3-6 weeks for bulk order
|
|
Package
|
Carton, support customization
|

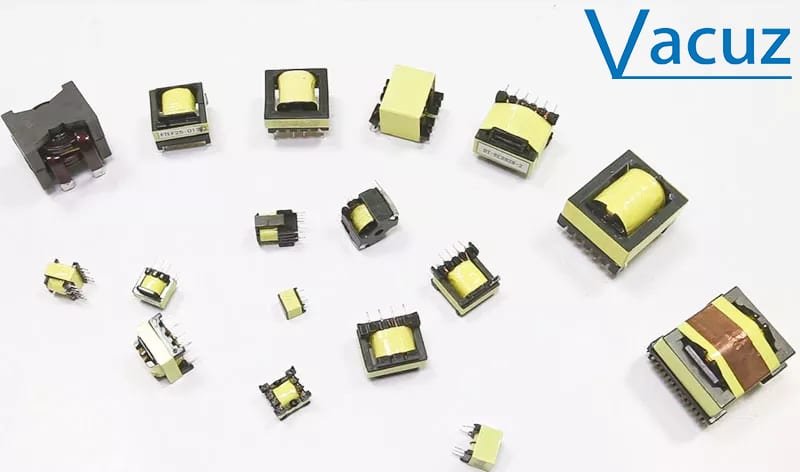

High Frequency Transformer Series
|
Series
|
Application
|
|
EE/EF Transformer
|
Switching power supply,main power transformer
|
|
EFD/EPC Transformer
|
Auxiliary power transformer,main power transformer,choke coils
|
|

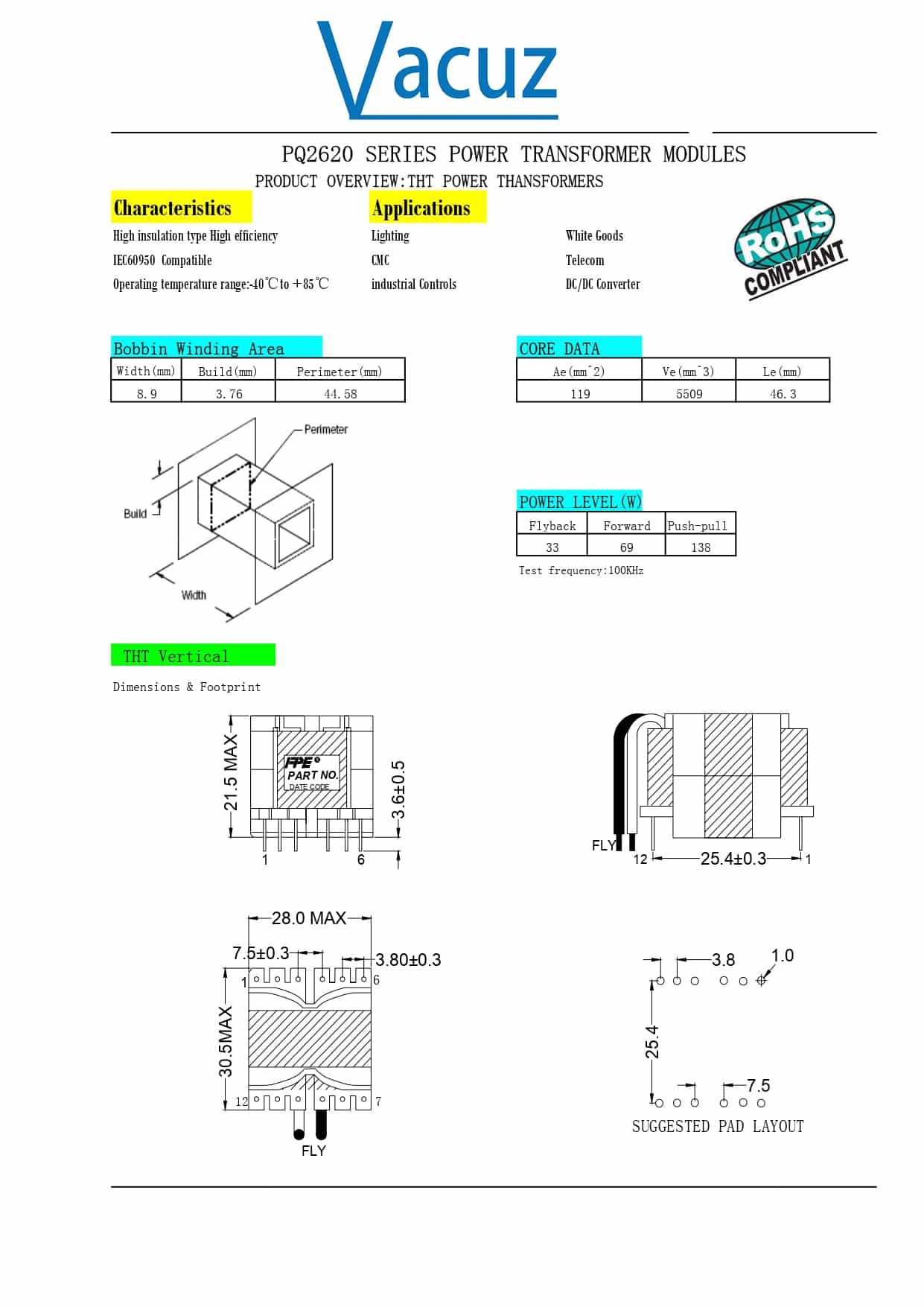

PQ Transformer
|
Applied in the linear filter,choke,pulse transformer,driver transformer
|
|
UU Transformer
|
Varieties of switching power supply transformer,choke coils
|
|
EC/EER/ER Transformer
|
Linear filter,current transformer,choke coil,power transformer
|
|
RM Transformer
|
Filters,inductor,transformer for telecommunication
|
|
POT Transformer
|
Filters for telecommunication equipment,inductor and transformer
|
|
EI Transformer
|
Various kinds of transformer and chokes
|
|

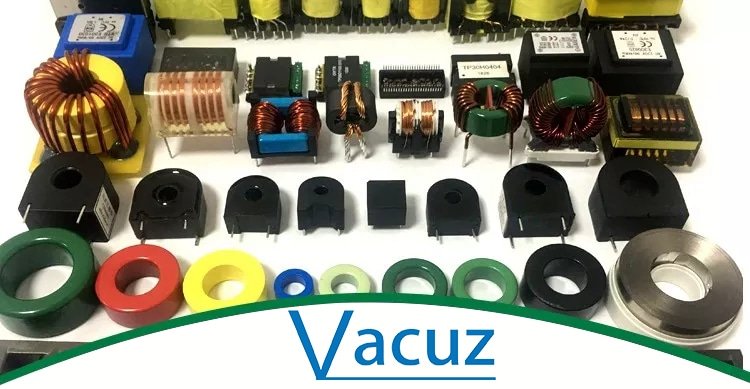

Toroidal Core
|
Pulse and wide-band transformers,filters,inductors and chokes.
|
Company Information
Vacuz Machine Factory was founded in May 2007, located at Dongguan City in Guangdong Province. It is a professional manufacturer engaged in the research, development, production, sale, and service of automatic winding machines, bobbin winding machine, transformer winding machine, motor winding machine, wireless coil winding machine, SQ common mode choke inductor winding machine and other non standard winding machines. We also provide Transformer, Toroidal coil inductors OEM services with our own R&D automatic winding machines. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as the Middle East, Europe, Africa, Asia, and North America. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements. Quality is our culture! Hope for your cooperation soon!

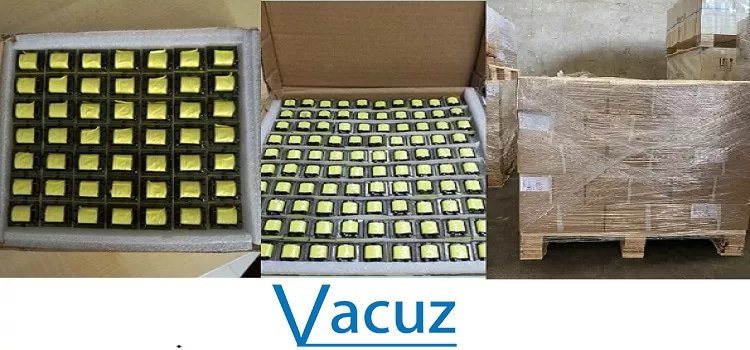

Packing & Shipping
Vacuz Factory Tour
